ELECTRICAL BRAKES: A NECESSITY, NOT AN OPTION FOR SAFE MACHINE OPERATION
In modern industrial environments, where automation and precision are paired with a focus on safety, the controlled stopping of rotating machine components is not just a technological challenge, but a HSE (Health, Safety, and Environment) obligation.
According to current standards, a machine must come to a halt within a specified time after power disconnection to not pose a threat to the operator or those in its vicinity.
In practice, this means implementing motor brake devices that actively shorten the stopping time of rotating parts, eliminating the risk of accidental contact with moving components. This is especially critical for machines like saws, milling machines, grinders, and mixers, where the inertia of the rotating tools can cause a delayed stop even after the power is cut.
Tripus: proven solutions for industry
At Tripus, known for high-quality electrical installation components, we offer a wide range of switches with brakes that meet strict safety requirements. Key features of our models include:
- electronic motor brake: this enables fast and controlled stopping of rotating parts by generating a braking counter current.
- braking current and time regulation: this allows for adjusting stopping parameters to the specific application and machine type.
- undervoltage protection: this protects against an uncontrolled machine startup after power returns.
- emergency stop mushroom push button: these ensure immediate power disconnection in hazardous situations.

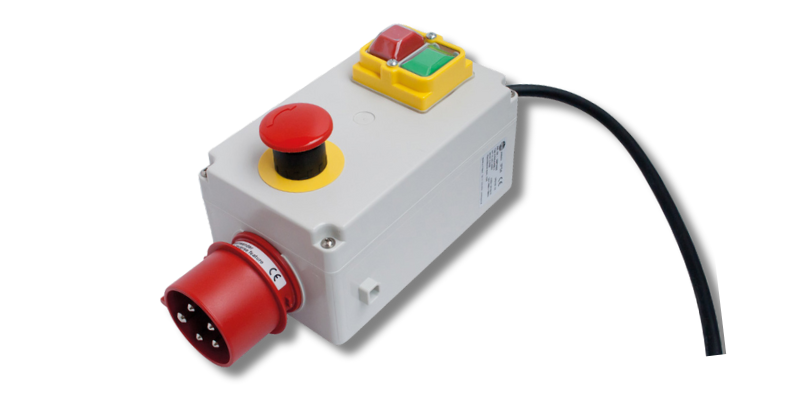

A prime example is the model 204P781.09, designed for three-phase machines. This device integrates the braking function with safety features and ergonomic operation, making it an ideal choice for production plants, carpentry workshops, and metalworking companies.
Upgrading your existing machine?
If you have a working machine and would like to upgrade it, Tripus offers electric brake modules that ensure machine stoppage. Models with various configurations are available to meet the diverse needs of users.

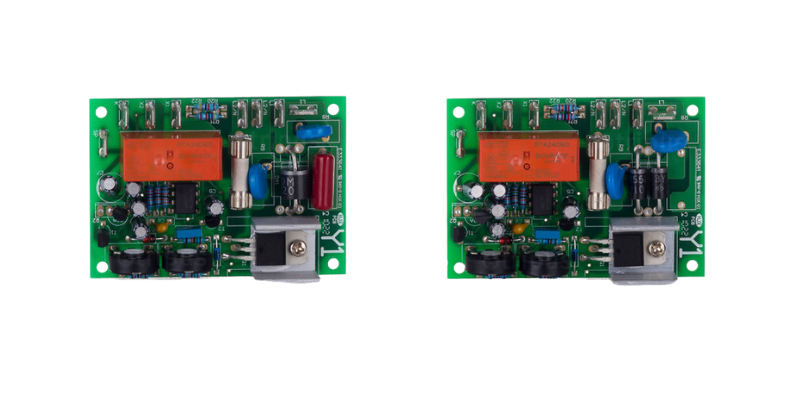

15A brake modules with open circuit
Two of the featured modules are basic versions of 15A brake modules. These are compact devices that provide effective performance for standard applications. Their main task is to control the brake’s operation, which translates to safety and efficiency. The modules are designed for control systems where a working status relay is already in use, as it is essential for the module’s correct operation.
Brake modules with relay
The other two modules extend functionality by adding a relay. Thanks to this, the module can be used in any machine, with the only limitation being the operating current.
Configuring the modules
Each module allows for precise determination of the brake reaction time, which enables optimal adaptation to the specific operation of a given machine or process. The inertia of driven machines varies, so time regulation is necessary for correct, safe, and compliant operation.
Benefits of using motor brakes
The use of brakes in electrical machine control systems brings several benefits:
- increased work safety: rapid stopping of rotating parts minimizes the risk of accidents.
- protection of machine mechanics: controlled braking reduces dynamic loads, extending component lifespan.
- compliance with legal requirements: meeting HSE and technical standards.
- improved operator comfort: greater control over the machine stopping process.
Summary
In an era of increasing demands for safety and production efficiency, investing in proper braking systems becomes not only sensible but essential. Tripus provides solutions that combine reliability, functionality, and compliance with standards, supporting businesses in creating a safe working environment.
