Ensuring the safety and operational continuity of machinery in your facilities is our top priority. To maintain the highest standard of service and ensure even faster order fulfillment, we are introducing a planned update to our industrial switch product line. We are evolving our proven TP3251 series into a unified, modern product line: 61TP.
Ensuring the safety and operational continuity of machinery in your facilities is our top priority. To maintain the highest standard of service and ensure even faster order fulfillment, we are introducing a planned update to our industrial switch product line.
We are evolving our proven TP3251 series into a unified, modern product line: 61TP.

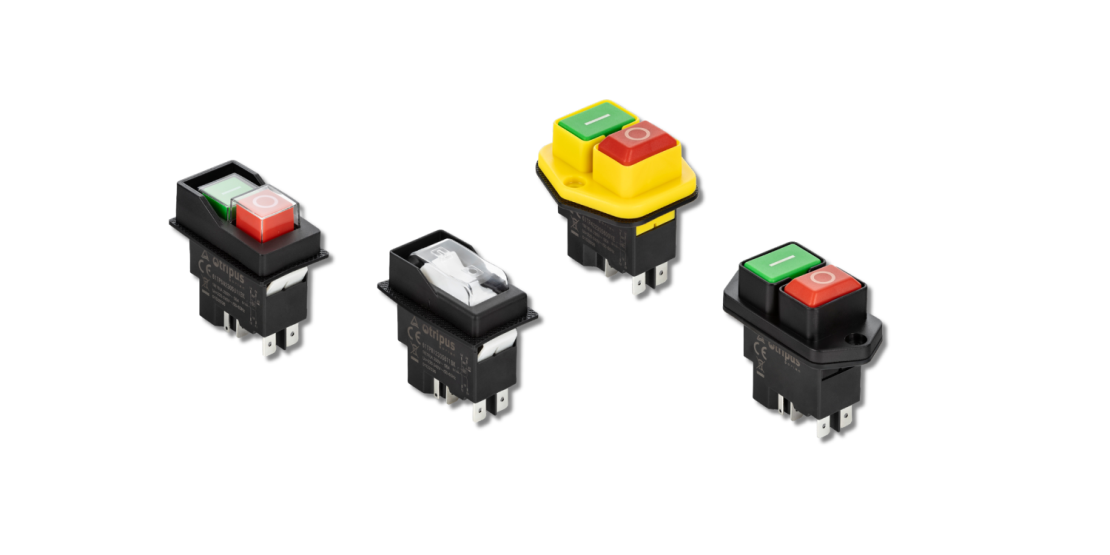

61TP Series (formerly TP3251) – undervoltage release switches: single-phase, 2-pole built-in switches with undervoltage release 230V for a wide range of applications such as motors, concrete mixers, drilling machines, and many more.
The most important information for design engineers, maintenance departments, and system integrators is that device functionality remains 100% preserved.
Along with the introduction of the 61TP series, we have streamlined and simplified our product numbering system. The former catalog numbers have been replaced with a logical parametric code, enabling engineers and procurement teams to quickly read key device specifications directly from the part number.
How to read the new part numbers? Example code structure:
Example part number from the 61TP series: 61 TP WI 230 5 6 1 0 BK
For your convenience, below is the complete cross-reference table mapping discontinued TP3251 part numbers to their new parametric codes:
| No. | Previous version (TP3251) | New 61TP part number (parametric code) |
|---|---|---|
| 1. | 306P005.01 | 61TPWI2305611BK |
| 2. | 306P005 | 306P005.02 | 61TPWI2305610BK |
| 3. | 306P000.02 | 61TPWI2305601BK |
| 4. | 306P000.03 | 61TPWI2305600BK |
| 5. | 306P201.03 | 61TPSN2305611BK |
| 6. | 306P202.07 | 306P200.02 | 61TPSN2305601BK |
| 7. | 306P400.01 | 61TP622305600BK |
| 8. | 306P402.03 | 306P402.04 | 61TP622305610BK |
| 9. | 306P400.01 | 306P400.02 | 306P400.03 | 61TP422305600YE |
| 10. | 306P500.01 | 306P500.02 | 306P500.03 | 306P500.04 | 61TP422305610YE |
Our application engineers are at your disposal. If you have questions regarding mounting dimensions for the new series or need assistance updating your project documentation, please contact our technical department:
Email: sales@tripus.com
Phone: +49 8221 – 9016 – 0
In case any technical questions our Technical Department remain for Your disposal
