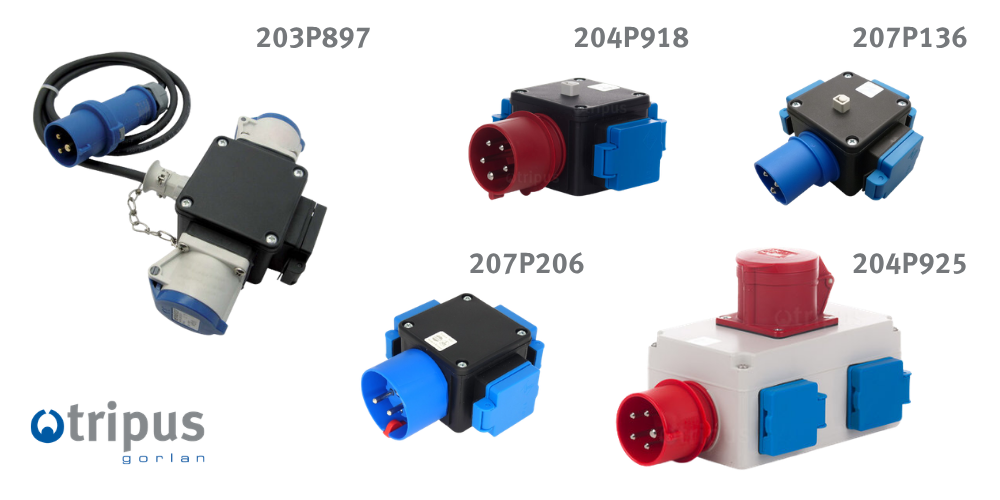

Product overview: which Tripus SVB power distributor to choose?
Depending on the specific requirements of your summer venture and the available mains power source, Tripus offers various hardware configurations that precisely meet concrete demands.
1. Summer catering, beer gardens, and commercial booths: power distributor 207P206
The most versatile solution is where a classic single-phase socket is available. It allows for the safe splitting of power to several lower-power devices, such as LED lighting, beverage refrigerators, payment terminals, or beer dispensers.
Technical data:
- Input: Schuko-plug collar blue 3-pole, CEE7/7 2P+E / 6h / 16A / 230V / 50-60Hz
- Output: Schuko-plug collar blue 3-pole, CEE7/3 2P+E / 16A / 250V
- Maximum Load: 3600 W
- Housing: ABS plastic, IP44 protection rating
2. Caravaning, campsites, and marinas: power distributor 207P136 (CEE17)
Blue 230V CEE plugs (CEE17 standard) are an integral part of the infrastructure at European campsites and marinas. This model allows for a direct connection to a campsite power pedestal, routing safe power to traditional, household-style plugs for everyday devices in a motorhome or at a tent pitch.
Technical data:
- Input: CEE-plug collar blue 3-pole, CEE 2P+E / 6h / 16A / 230V / 50-60Hz
- Output: 3 Schuko-sockets, CEE7/3 2P+E / 16A / 250V
- Maximum load: 3600 W
- Housing: ABS plastic, IP44 protection rating
3. Flexible power for campers, caravans, and mobile infrastructure: power distributor 203P897
A version designed specifically for demanding camper and caravan users, campsite owners, as well as organizers of outdoor events and mobile commercial booths. Instead of an integrated plug on the housing, this model is equipped with a flexible power cable and a practical metal chain. This allows the distributor to be conveniently suspended from a hook, a tent frame, or caravan chassis elements. As a result, the equipment is effectively protected from resting directly on damp, grassy ground, ensuring a safe power supply for motorhomes, caravans, lighting, and mobile setups.
Technical data:
- Input: ca. 2m net cable H07RN-F3G1,5mm² with plug 3-pole, CEE 2P+E / 16A / 6h / 230V / 50-60Hz
- Output: 2 sockets CEE 2P+E 16A / 6h / 230V, 1 Schuko socket 16A / 230V
- Extras: hanging chain
- Housing: ABS plastic, IP44 protection rating
4. Higher-power catering and stage technology: three-phase power splitter 204P918 (400V to 230V)
Very often, behind the scenes of summer events or near catering areas, the only available power source is a red three-phase socket. The 20P3165 model is the perfect “adapter” that transforms a three-phase power supply into three independent single-phase power sources. This allows you to safely power three different 230V appliances – such as chafing dishes, refrigerators, and lighting – from a single three-phase connection.
Technical data:
- Input: CEE plug collar 5-polig, CEE 3P+N+E / 16A / 6h / 400V / 50-60Hz
- Output: 3 Schuko-sockets, CEE7/3 2P+E / 16A / 250V
- Obudowa: Tworzywo ABS, stopień ochrony IP44
5. Food trucks and advanced sound systems: three-phase power splitter 204P925 (1x CEE loop-through socket 400 V, 16 A, 5-pole, red)
Designed for applications where high power is required, and you need to power both a three-phase machine (e.g., a professional combi-steamer in a food truck) and standard single-phase equipment simultaneously. The 20P3168 model allows you to connect a three-phase machine while simultaneously routing power to two additional 230V sockets.
Technical data:
- Input: CEE-plug collar 5-pole, CEE 3P+N+E / 16A / 6h / 400V / 50-60Hz
- Output: 1 socket 5-pole, CEE 3P+N+E / 16A / 6h / 400V, 3 Schuko-sockets 16A / 230V
- Housing: ABS plastic, IP44 protection rating
Tripus expert tip: When designing outdoor summer installations, always calculate the total power consumption of the devices you plan to connect to a single-phase distributor. The maximum load for 230V SVB models is 3600W. Exceeding this value will cause the overcurrent protection devices (circuit breakers) in the supply network to trip.
